Goldfish Series – 250x250mm

Features:

Easy and Quick Installation with Magnetic Front Service
Light Weight and Slim
Flexible for Flat, Curve and 90° Straight Angle Assembly
Available for Horizontal and Vertical Installation


Specification

Application

oldfish Series is mainly designed for indoor wall-mounting LED display screen and it will help save installation space and be mounted onto the concrete wall directly without any heavy external frame. The front service will be easy and quickly to be done via the magnetic tool. The whole cabinet size is 1000mx250mm(WxH). What is more, the cabinets are able to be assembled together horizontally or vertically, even 90° straight angle  to meet with different visual effect or the required screen size.

Indoor Front Maintenance

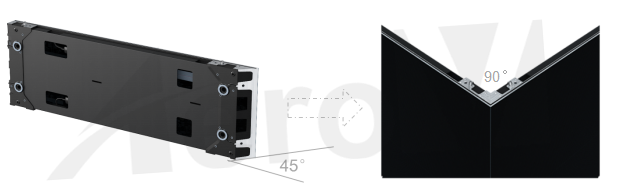

90° Combination

Magnetic-front-service-led-screen



Technical Parameters



Pixel Pitch 1.95mm 2.6mm 3.91mm
Module Resolution(WxH) 128×128 96×96   64×64
Module Size(WxH) 250mmx250mm 250mmx250mm 250mmx250mm
Cabinet Resolution(WxH) 512×128 384×96 256×64
Cabinet Size(WxHxT) 1000mmx250mmx40mm
Pixel Configuration SMD1515 SMD2020 SMD2020
Viewing Angle 120°(H) / 120°(V) 120°(H) / 120°(V) 120°(H) / 120°(V)
Brightness ≥600 nits ≥600 nits ≥600 nits
Gray Scale 16384 levels per color
Refresh Rate ≥1920Hz
Min. Viewing Distance 1.95m 2.6m 4m
N.W. 6kg 6kg 6kg
Input Power (max./avg.) 540W/200W
Maintenance magnetic front service
IP Rating IP20

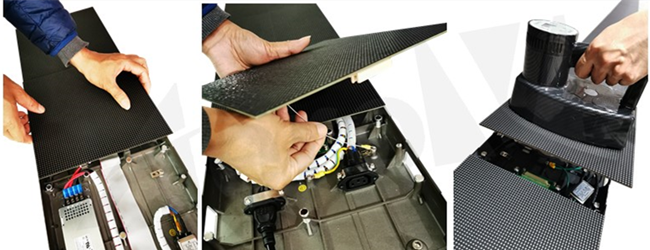

Front Service via Vacuum Suction Cup



3.91-indoor-led-sign
